Traxxas X-maxx

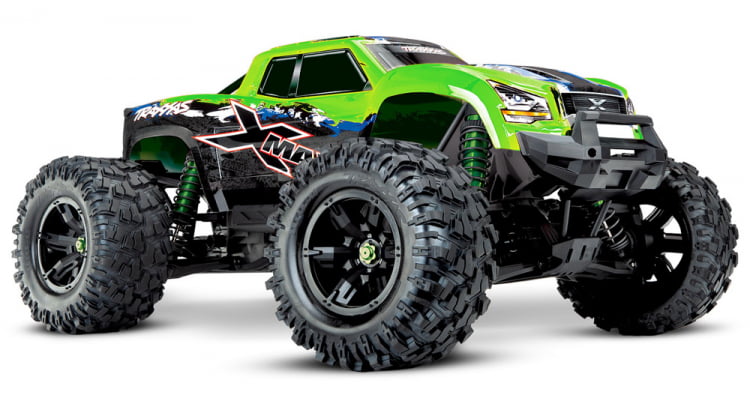

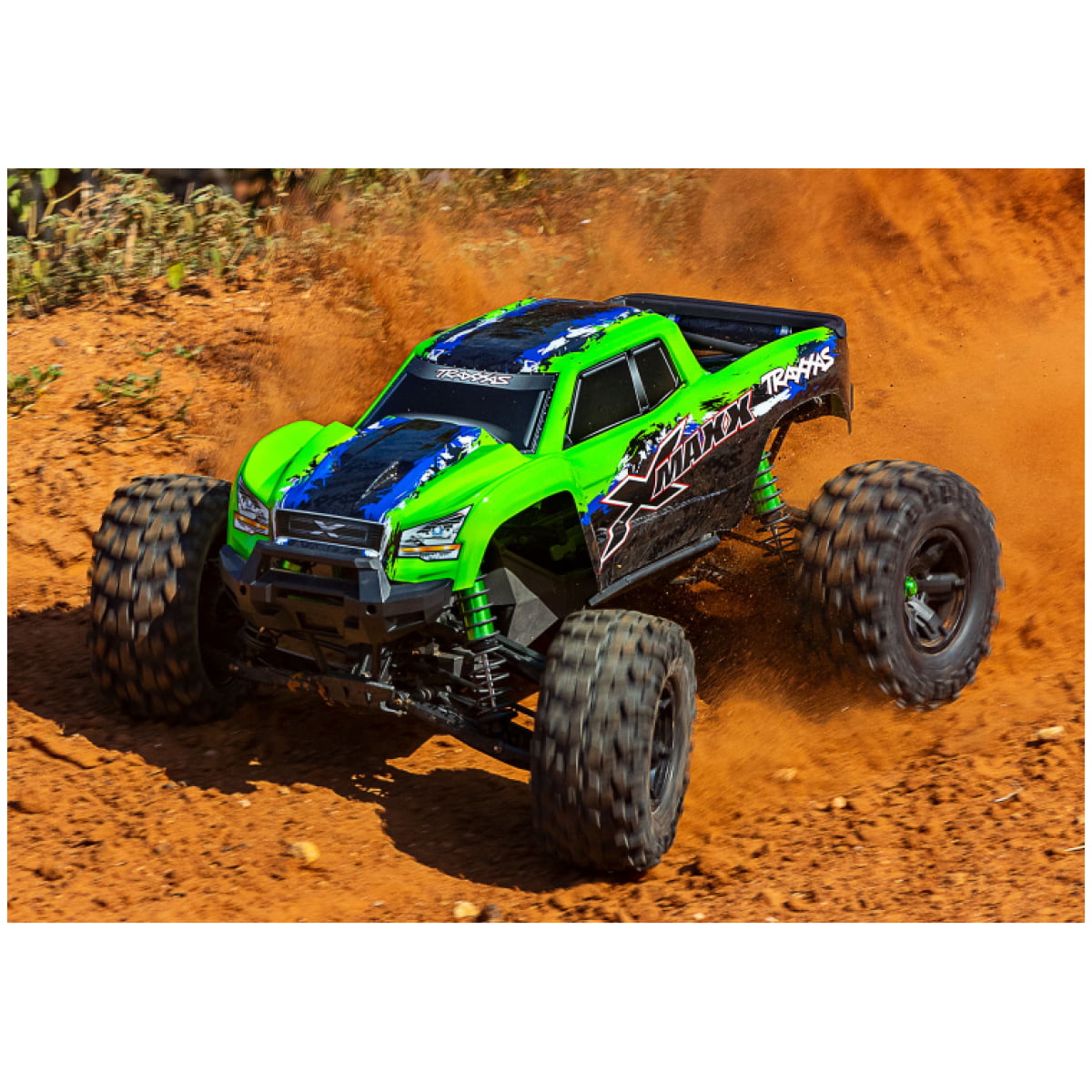

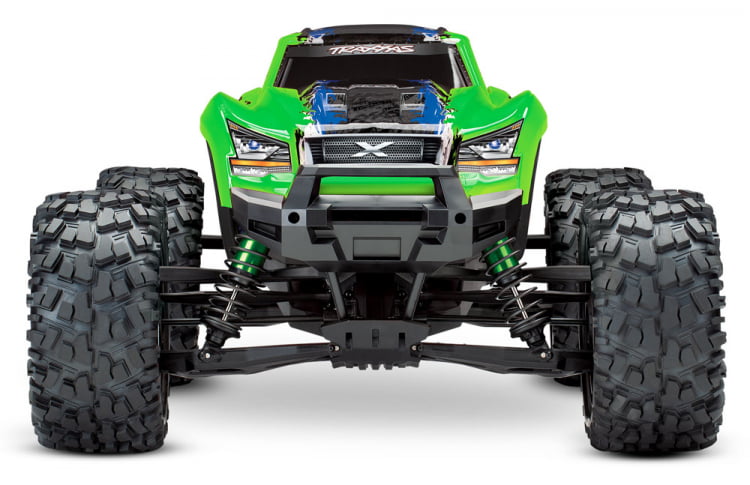

Traxxas X-MAXX 8s – GREEN-X

Mammoth size, unrelenting 4X4 power and award-winning innovation make the X-Maxx the optimal monster truck. With extreme 8s LiPo power the X-Maxx defies physics – unleashing massive acceleration and 80+kph top speeds. Engineered to conquer the most extreme terrain and take brutal real-world punishment in stride, X-Maxx is the definition of Traxxas Tough®.

X-MAXX 8s Features:

• Velineon VXL-8s Brushless Power System with VXL-8s Waterproof Electronic Speed Control & Velineon 1200XL Brushless Motor

• 80+ KPH with Two 4s LiPo Batteries and Included Optional Spur Gear

• Traxxas Stability Management – Helps prevents spinouts and loss of control

• TQi™ 2.4GHz High Output Radio System

• New Body Mount System

Truck Specs:

• Length: 779 mm

• Front Track: 540 mm

• Rear Track: 525 mm

• Ground Clearance: 102 mm

• Weight: 8.66 kg

• Height (ride): 350 mm

• Wheelbase: 480 mm

• Shock Length: 187 mm

• Tires (pre-glued): W101 x D203 mm

• Wheels: 110 x 145 mm

• Speed Control: Velineon VXL-8s

• Motor (electric): Velineon 1200XL

• Transmission: Single-Speed

• Overall Drive Ratio: 8.11 (stock, out-of-box)

• Differential Type: Sealed, Hardened Steel Bevel, Limited Slip

• Gear Pitch: 1.0-Pitch

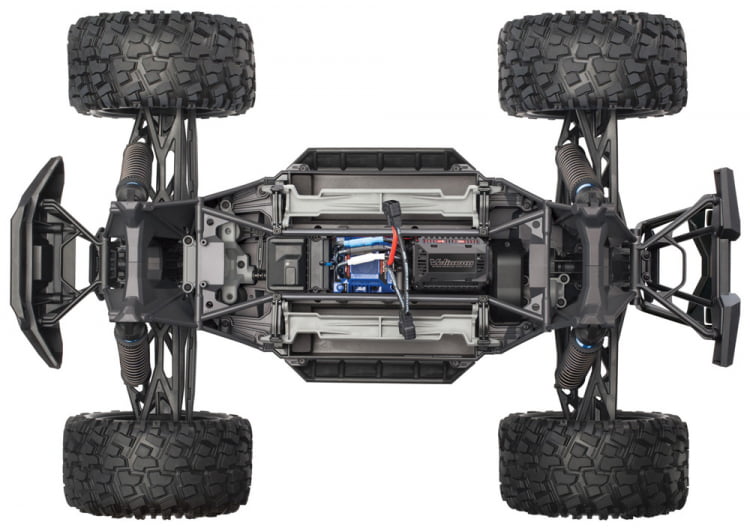

• Chassis Structure/Material: Composite Nylon Tub

• Brake Type: Electronic

• Drive System: Shaft-Driven 4WD

• Steering: Bellcrank

• Radio System: TQi™ 2.4GHz Transmitter with TSM receiver™

• Servo: Torque: 365oz – Speed: 0.17 sec/ 60 degrees (6.0V)

• Top Speed: 80+ KMH with two 4s LiPo batteries and optional pinion gear

• Skill Level: 6

• Battery Tray: 197 x 51.5 x 44 mm

• Required: 4 “AA” (transmitter), 2x 4S LiPos with iD & EZ-Peak Live Charger

Motor Specs:

• Type: 1275 kv Sensorless Brushless

• Weight: 665 g

• Length: 110 mm

• Diameter: 48 mm

• Connector Type: Traxxas 6.5 mm Bullet Connectors

ESC Specs:

• Input Voltage: 4s – 8s LiPo (Max 33.6 Volts)

• Case Size: 58 x 72 x 46 mm

• Weight: 161.4 g

• Motor Connectors: Traxxas 6.5 mm Bullet Connectors

• Battery Connectors: Traxxas High-Current Connectors with iD™

• Power Wire: 10-gauge Maxx Cable

What’s In The Box:

• X-Maxx, Ready-To-Race® model with Traxxas Big Block™ brushless motor

• VXL-8s waterproof electronic speed control

• Quick Start Guide

• TQi™ 2.4GHz radio system

• High quality maintenance tools

What You’ll Need:

• Batteries: IMPORTANT: X-Maxx requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh or greater, Power Cell LiPo batteries with iD are recommended (part #2890X).

• LiPo Balance Charger with iD™: Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).

• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
